Cl4Fire Code 96

CL4 Fire products for grease ducts, ventilation ductwork and metal pipes

(Non Fuel And Fuel Applications)



CL4 Fire- Red Data page

CL4 Code 96 Data page


QAI Logo CCMC Evaluation Logo

Fire Protection Products

CL4FIRE RED Wrap Insulation

Canada’s National and Provincial building codes approved 38mm thick single layer wrap system for combining reduced and 0mm clearances for up to 2-hour fire rating on grease duct, ventilation and metal pipes.


General Information- Product Description


CL4FIRE Wrap Products are manufactured using flexible bio-soluble insulation calcium-magnesium-silica insulation blankets totally encapsulated in a fiber reinforced aluminum scrim jacketing. Please note in some jurisdictions, it is recommended that a mask be worn when handling bio-soluble blankets.



CL4FIRE RED


CL4FIRE Red Label has been tested, certified and continually inspected by Quality Auditing Institute-QAI, a world renown independent third party laboratory servicing numerous global manufactures.CL4Fire Red Label is listed by QAI Laboratories and uniquely combined with evaluation 14372-R per the Canadian Materials Division of the National Research Council of Canada to ensure conformance to all Canadian Building Codes.


Listed, tested and evaluated by QAI Laboratories for large steel ventilation duct sizes up to 218 cm(86") and width up to 13,316 sq cm (2064 sq.in.) using a single layer of nominal 38mm(1 1⁄2”) thick x 96kg/m3(6pcf).


Requires 38mm (1 1⁄2”) nominal thickness for ventilation ductwork and metal piping. Also approved using nominal 76mm(3") thickness for grease duct and metal fuel piping such as diesel and natural gas.



Features and benefits


CL4FIRE Red Label insulation blanket is a lightweight, high temperature, bio-soluble calcium-magnesium silica insulation blanket that is fully foil encapsulated and bonded to the fiberglass reinforced scrim to ensure a secure and responsible installation without gaps. It is designed to be installed using weld pins, steel banding or a combination of both fastening methods as outlined in QAI listed systems F405-1-1, F405-1-2 and F405-1-4 and as outlined in NRC-Canadian Construction Materials Division (CCMC) evaluation 14387-R.


CL4FIRE Red Label meets CAN/ULC S-102 building code required flame spread index < 25 and a smoke development value of < 50.


Listed and building code reviewed for single layer 38mm (1 ½) thick application on ventilation ductwork and non-fuel metal piping for up to a 2-hour fire rating.


Listed and building code reviewed for 76mm (3”) thick application on grease ductwork, generator exhaust, and metal fuel piping for up to a 2-hour fire rating when installed per QAI listed system F405-1-4 and CCMC 14382-R. Evaluated for use as 2nd 38mm (1 ½”) layer which can be intermittently applied in combination with CL4FIRE CODE-96 38mm (1 ½”) thickness blanket insulation. Together these products offer a unique zero clearance, thin, safe and easy to install grease duct system specifically designed and approved for Canadian Building Codes installations.



Code and Standards


CL4FIRE Red Label meets the following standards testing to requirements outlined by the National Research Council of Canada’s Construction on Materials Division as necessary for meeting Canadian building codes. See CCMC Evaluation 14382-R for additional Information.


  • CCMC Evaluation 14382-R combined with a Ministers ruling for the Ontario Ministry of Municipal Affairs & Housing Evaluation is required for fire protection of ventilation ductwork, metal piping and grease duct for reduced clearance to combustible materials because there is no Canadian building code referenced standards for ventilation duct or metal pipe applications. CCMC is the only agency that can offer evaluation for grease duct reduced clearances to combustibles materials because there is no Canadian building code referenced standards for ventilation duct or metal pipe applications. CCMC is the only agency that can offer evaluation for grease duct reduced clearances to combustible materials because the CAN/ULC $144 grease duct testing standard only outlines testing for zero clearance to combustibles.
  • NFPA- 96 - Standard for ventilation Control and Fire Protection of Commercial Cooking Operations
  • CAN/ULC S144 Standard Method of Fire Resistance Test - Grease Duct Assemblies
  • ISO 6944 - 1985 Duct -A - Fire Resistance Tests - Ventilation Duct
  • CAN/ULC S115 Standard Method of Fire Tests of Firestop Systems
  • CAN/ULC S102 Standard Method of Test for Surface Burning Characteristics of building materials
  • ASTM E2336 Standard Test Methods for Fire Resistive Grease Duct Enclosure Systems (superseded in Canada by CAN/ULC S144 standard)
  • ASTM E 119 – Standard Test Methods for Fire Tests of Building Construction and Materials
  • ASTM E 84 – Standard Test Method for Surface Burning Characteristics of Building Materials
  • ASTM E 814 (UL 1479) – Fire Tests of Through-Penetration Fire Stops Standard
  • CAN/ULC S135 - Standard Test Method for The Determination of Combustibility Parameters of Building Materials
  • CAN/ULC S702 - Standard for Mineral Fiber Thermal Insulation for Buildings
  • ASTM C411 Standard Test Method for Hot-Surface Performance of High-Temperature Thermal Insulation
  • ASTM C356 – Standard Test Method for Linear Shrinkage of Preformed High-Temperature Thermal Insulation Subjected to Soaking Heat
  • ASTM C1136 – Standard Specification for Flexible, Low Permeance Vapor Retarders for Thermal Insulation
  • ASTM E96 – Standard Test Methods for Water Vapor Transmission of Materials
  • ASTM E1371 Standard Test Method for Determination of Emittance of Materials near Room Temperature Using Portable Emissometers
  • ASTM C518 Standard Test Method for Steady-State Thermal Transmission Properties
  • ASTM C1338 Standard Test Method for Determining Fungi Resistance
  • ASTM C665 Standard Specification for Mineral-Fiber Blanket Thermal Insulation for Light Frame Construction and Manufactured Housing


Specifications - Division 12 07 00


Product shall be stored in sealed original moisture packaging prior to use.


CL4Fire shall be installed by a qualified contractor in strict accordance with QAI listed systems or CCMC 14687- R evaluation requirements.


Grease duct access doors must be CL4FIRE Red Label protected with installation per manufacturers detailed requirements.


12mm(1/2") wide stainless steel banding must be installed using tensioning tool and crimped with stainless steel banding clips.


Where required steels insulation pins must be capacitor discharge gun welded to exposed or underside of ductwork on maximum 304mm(12") centers and maximum(6") from the edge of duct.


2 or 3 sided application may be installed only when the gap between the substrate and duct or pipe does not exceed 102mm( 4").


Should a transition be required from a gypsum shaft system to a CL4FIRE Fire Protection Thermal Insulation installation, the annular space around the duct and the shaft must be filled to a minimum of 102mm(4") depth of CL4FIRE insulation and topped with a 6mmm(1\4") depth of sealant flush with the surface of the gypsum.




Applications


Grease duct


Grease duct zero clearance installations must be installed using minimum 76mm (3”) thickness of CL4FIRE Red Label installed to QAI listed system F405-1-4 listed system requirements.

Grease Duct maximum 230mm (9”) clearance from the ductwork to combustible applications must be installed using CCMC 14387-R detail as outlined in Appendix A of the CCMC document.


Ventilation duct


Ventilation ductwork or metal non-fuel piping must have a single layer of CL4FIRE Red Label 1 ½” thick installed to QAI listed system F405-1-1 as follows:

  • For up to a 1-hour fire rating CL4FIRE Red Label may be installed using snugly butted seams or 76mm (3”) overlaps throughout
  • For to a 2-hour fire rating CL4FIRE Red Label must be installed using 76mm (3”) overlaps throughout

Metal Fuel Piping


Metal fuel-piping such as natural gas and diesel must be installed using a minimum 2 layers of CL4FIRE Red Label installed using 2-layers of 38mm (1 ½”) CL4FIRE Red Label with seams staggered a minimum 76mm or (3”).


Fire Protection Products

CL4FIRE CODE-96™ Wrap Insulation

Canada’s National and Provincial building codes approved 38mm thick single layer wrap system for combining reduced and 0mm clearances for up to 2-hour fire rating on grease duct, ventilation and metal pipes.


General Information- Product Description


CL4FIRE Wrap Products are manufactured using flexible bio-soluble insulation calcium-magnesium-silica insulation blankets totally encapsulated in a fiber reinforced aluminum scrim jacketing. Please note in some jurisdictions, it is recommended that a mask be worn when handling bio-soluble blankets.



CL4FIRE CODE-96™

CL4FIRE CODE-96 has been tested, certified and is continually inspected by Quality Auditing Institute - QAI, a world renown independent third-party laboratory servicing numerous global manufacturers. CL4FIRE CODE-96 and CL4FIRE Red Label are listed by QAI Laboratories.

CL4FIRE CODE-96 is a product that been approved for use in fire protecting grease ductwork as outlined in evaluation 14382-R from the Canadian Construction Materials Centre (CCMC) of the National Research Council of Canada in association with the Ontario Ministry of Municipal Affairs & Housing to ensure conformance to all Canadian Building codes.


Used primarily for grease ductwork, a single layer application of nominal 38mm (1 1⁄2”) thick, 96 kg/m3 (6 pcf) provides up to 2-hour fire rang for minimum of 230mm (9”) from combustible materials (see evaluation 14382-from the Canadian Construction Materials Centre (CCMC) of the National Research Council of Canada). When zero clearance to combustibles is required simply add a 2nd layer of CL4FIRE Red Label or CL4FIRE CODE-96 in that location and then return to using a single layer once the clearance requirement again exceeds the 230mm requirement for a single layer installation. See detail below.


CL4FIRE CODE-96 is also applicable on any QAI listed application as a direct replacement for 38mm (1 1⁄2”) thick CL4FIRE Red



Features and benefits


CL4FIRE CODE-96 is an environmentally friendly flexible fire protection duct wrap product approved to Canadian Building codes. We all know that it takes a significant amount of heat and energy to manufacture high temperature insulation and it also takes an enormous amount of fuel to transport any materials to the marketplace. By installing CL4FIRE CODE-96, you have the opportunity to cut carbon emissions.


The application of only a single layer of material CL4FIRE CODE-96 allows for significant space and labor savings over any other 2- layer flexible wrap system in Canada and takes significantly less storage space on the jobsite.


CL4FIRE CODE-96 insulation blanket is a lightweight, high temperature, bio-soluble calcium-magnesium silica insulation blanket that is fully foil encapsulated and bonded to the fiberglass reinforced scrim to ensure a secure and responsible installation without gaps. It is designed to be installed using weld pins, steel banding or a combination of both fastening methods as outlined in QAI listed systems F405-1-4 and as outlined in NRC – Canadian Construction Materials Division (CCMC) evaluation 14387-R.


CL4FIRE Red Label meets CAN/ULC S-102 building code required flame spread index < 25 and a smoke development value of < 50.



Code and Standards


CL4FIRE Red Label meets the following standards testing to requirements outlined by the National Research Council of Canada’s Construction on Materials Division as necessary for meeting Canadian building codes. See CCMC Evaluation 14382-R for additional Information.


  • CCMC Evaluation 14382-R combined with a Ministers ruling for the Ontario Ministry of Municipal Affairs & Housing Evaluation is required for fire protection of ventilation ductwork, metal piping and grease duct for reduced clearance to combustible materials because there is no Canadian building code referenced standards for ventilation duct or metal pipe applications. CCMC is the only agency that can offer evaluation for grease duct reduced clearances to combustibles materials because there is no Canadian building code referenced standards for ventilation duct or metal pipe applications. CCMC is the only agency that can offer evaluation for grease duct reduced clearances to combustible materials because the CAN/ULC $144 grease duct testing standard only outlines testing for zero clearance to combustibles.
  • NFPA- 96 - Standard for ventilation Control and Fire Protection of Commercial Cooking Operations
  • CAN/ULC S144 Standard Method of Fire Resistance Test - Grease Duct Assemblies
  • ISO 6944 - 1985 Duct -A - Fire Resistance Tests - Ventilation Duct
  • CAN/ULC S115 Standard Method of Fire Tests of Firestop Systems
  • CAN/ULC S102 Standard Method of Test for Surface Burning Characteristics of building materials
  • ASTM E2336 Standard Test Methods for Fire Resistive Grease Duct Enclosure Systems (superseded in Canada by CAN/ULC S144 standard)
  • ASTM E 119 – Standard Test Methods for Fire Tests of Building Construction and Materials
  • ASTM E 84 – Standard Test Method for Surface Burning Characteristics of Building Materials
  • ASTM E 814 (UL 1479) – Fire Tests of Through-Penetration Fire Stops Standard
  • CAN/ULC S135 - Standard Test Method for The Determination of Combustibility Parameters of Building Materials
  • CAN/ULC S702 - Standard for Mineral Fiber Thermal Insulation for Buildings
  • ASTM C411 Standard Test Method for Hot-Surface Performance of High-Temperature Thermal Insulation
  • ASTM C356 – Standard Test Method for Linear Shrinkage of Preformed High-Temperature Thermal Insulation Subjected to Soaking Heat
  • ASTM C1136 – Standard Specification for Flexible, Low Permeance Vapor Retarders for Thermal Insulation
  • ASTM E96 – Standard Test Methods for Water Vapor Transmission of Materials
  • ASTM E1371 Standard Test Method for Determination of Emittance of Materials near Room Temperature Using Portable Emissometers
  • ASTM C518 Standard Test Method for Steady-State Thermal Transmission Properties
  • ASTM C1338 Standard Test Method for Determining Fungi Resistance
  • ASTM C665 Standard Specification for Mineral-Fiber Blanket Thermal Insulation for Light Frame Construction and Manufactured Housing


Specifications - Division 12 07 00


Product shall be stored in sealed original moisture packaging prior to use.


CL4Fire shall be installed by a qualified contractor in strict accordance with QAI listed systems or CCMC 14687- R evaluation requirements.


Grease duct access doors must be CL4FIRE Red Label protected with installation per manufacturers detailed requirements.


12mm(1/2") wide stainless steel banding must be installed using tensioning tool and crimped with stainless steel banding clips.


Where required steels insulation pins must be capacitor discharge gun welded to exposed or underside of ductwork on maximum 304mm(12") centers and maximum(6") from the edge of duct.


2 or 3 sided application may be installed only when the gap between the substrate and duct or pipe does not exceed 102mm( 4").


Should a transition be required from a gypsum shaft system to a CL4FIRE Fire Protection Thermal Insulation installation, the annular space around the duct and the shaft must be filled to a minimum of 102mm(4") depth of CL4FIRE insulation and topped with a 6mmm(1\4") depth of sealant flush with the surface of the gypsum.




Applications


Grease duct


CL4FIRE CODE-96 is applicable for Grease Duct maximum 230mm(9") clearance from ductwork to combustible materials and must be installed as per CCMC 14387-R as outlined in Appendix A and B

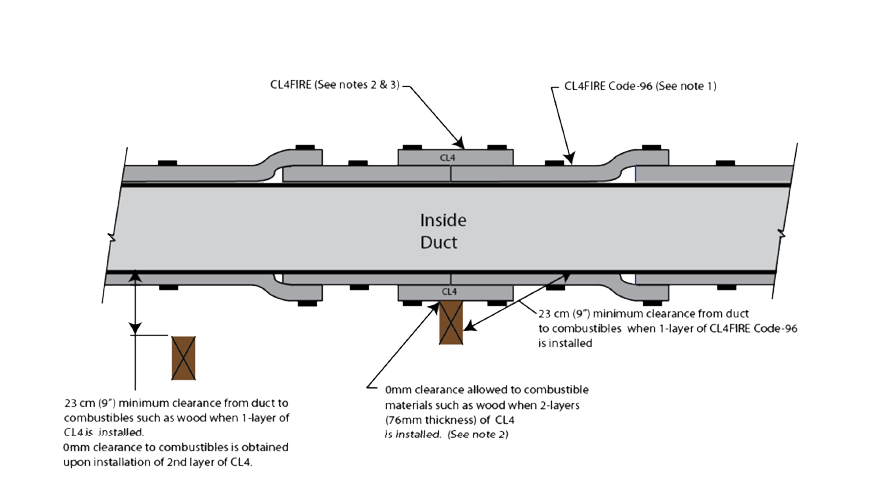

APPENDIX A

CL4Fire Code-96™ INSTALLATION DETAIL


dfgd
Notes:
  1. Single layer for 23 cm(9") clearance specifically requires CL4FIRE Code-96 product
  2. Adding a 2nd layer of either CL4FIRE-Reed or Code-96 insulation offers 0mm clearance to combustible materials
  3. Sections requiring two-layers of insulation are allowed to use CL4FIRE Code-96 as either the internal or external layer


APPENDIX B

CL4Fire Code-96™ ACCESS DOOR DETAIL


dfgd
